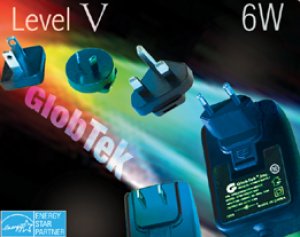

Green Power Supplies Meet Efficiency Level V Requirements 6W
Wall Plug-in Power Supplies with Interchangeable Blades include North America, Europe, U.K., Australia, China, Korea Class II, S. Africa, Argentina, IEC Inlet available in single blade installation or sold as a kit. Double-Enforced Insulation Mechanical Configurations, Regulated Outputs voltage from: 3.3 to 15Vdc in 0.1V increments, up to 6W of continuous output power. GlobTek’s GT-41134 series of enclosed power supplies are housed in Impact Resistant non-vented Polycarbonate Case, Thermal Conduction Cooling, Case Dimensions: 40.5 x 62 x 31.5 (mm).
This Family features: Regulated output with very low ripple, Built-in Protection features: O.C., S.C., O.V., Thermal, accepts Universal Input: 90-264Vac, meet UL /cUL & other International Safety Agency to IEC/EN60950 Requirements complies with EMI/RFI Regulations, EMC Directives/ CE and FCC Class B for ITE applications. All Models carry agencies’ logos and CE-Mark. Reports including CB are generated by independent Certified Laboratory. Modified and Custom Designs are Also Available. GlobTek now offers a 5-year warranty. Made in USA option available upon request.
|Input V Hz||100-240V~, 50-60 Hz|
|Output V Range||3.3-48|
|Agency certifications||GT-41134 Interchangeable|
|Datasheet||GT-41134-06VV-x.x-Q (Constant Current)|
