Right Angle Overmold of 712A, 722A, L722A, L712A type Locking Barrel jack now available molded on PVC and Silicon Jacket Cable
直角712A, 722A, L722A, L712A类型带锁定功能圆形插头和PVC和硅胶线连接的模具已经完成. Verschraubbare Koaxialstecker vom Typ 712A, 722A, L722A, L712A sind nun mit rechtwinkliger Umspritzung an Kabeln mit PVC und Silikonmantel erhältlich. Ángulo recto Sobremolde de 712A, 722A, L722A, conector tipo barril. El L712A es disponible moldeado en PVC y Silicon Cable. Connecteurs coudés à verrou de type cylindrique, 712A, 722A, L722A, L712A surmoulés sur câbles en PVC ou silicone Guaina con angolo a destra per connettori a jack cilindrico bloccabile tipo 712A, 722A, L722A, L712A ora disponibile stampata in silicone e PVC sulla guaina de cavo

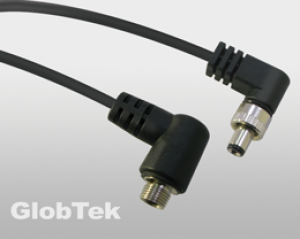

Right Angle Overmold of 712A, 722A, L722A, L712A type Locking Barrel jack now available molded on PVC and Silicon Jacket Cable

In response to a customer requirement for a clean and professional look and a highly reliable lifespan, GlobTek created a mold tooling for a right angle overmold for the 712A, 722A, L722A, L712A type Locking power jacks. The 712A, 722A, L722A, L712A type jacks feature an internal pin of either 2.1mm or 2.5mm depending on P/N selected and a 5/16-32 NEF-2A Thread to mate with S760k, 760k, 761k, and S761k power plugs also available with overmolds from GlobTek. The Overmold/boot may be molded on PVC or Silicone material cable jackets. The overmold helps the connector withstand thousands of plug/unplug cycles without risk of damage or wear in rugged applications. The overmold and connector combination is design for use on round UL type 1185 of 2464 wire with and without a shield. The cable assembly can be provided as a cable assembly or as an output cord for a GlobTek power supply. This right angle overmold is also available on S761K and 761K type locking plugs.

Custom Colors, Overmold Shapes/Sizes, Cable types and Gauages, and Terminations available upon request.

GlobTek designed the overmold and cable solution inhouse and has the capability to design and manufacture cable assemblies for all types and brands of connectors and cables. Full cable manufacturing and testing facilities are available in Northvale NJ, USA and Suzhou, Jiangsu, China. GlobTek maintains a large range of customized and standard tooling available for customer applications as well as a ability to rapidly design and manufacture custom and bespoke solutions.

GlobTek is a power systems solutions provider with design and manufacturing facilities in the USA and China and sales offices in Germany, France, and the UK. Offering a line of power supplies for applications from gym equipment to medical systems, GlobTek can also develop and create custom power solutions for just about any application. GlobTek is located at 186 Veterans Drive, Northvale NJ 07647. For more information call 201-784-1000 or visit GlobTek online at www.globtek.com.

Made in USA option available.

5 year warranty
