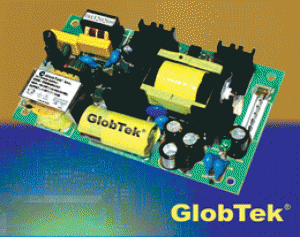

Up to 80W of continuous output power with 10CFM of airflow (65W convention cooled) with output voltages ranging from: 3.3V to 48V in 0.1V increments. GlobTek’s GT(M)2065 high efficiency, 85% typ., family of Open-Frame/ PCB Mount Style power supplies is available various Input/Output configurations: Locking Headers, Screw Terminals, Leads, i.e. Accepts Universal Input: 90-264 Vac 47-63 Hz, features regulated output with low ripple, has Class B EMI Filter and P.F.C Correction Option; Built-in Protection: O.C./S.C., O.V., O.T. Packaged in an industry standard 3.0 x 5.0 x 1.3 (in), the series is ideal for 1U applications.

Certified/Approved to cUL/DEMKO International Safety Agencies for use with Medical EN 60601.1 or Information Technology 60950 Equipment applications. The series meets Conducted and Radiated EMI Class B and complies with the immunity requirements under EN61000 series of standards. It is available in open frame, open frame with wire harness, open base plate of any size and L-Bracket with perforated top cover. Made in USA option available upon request.
