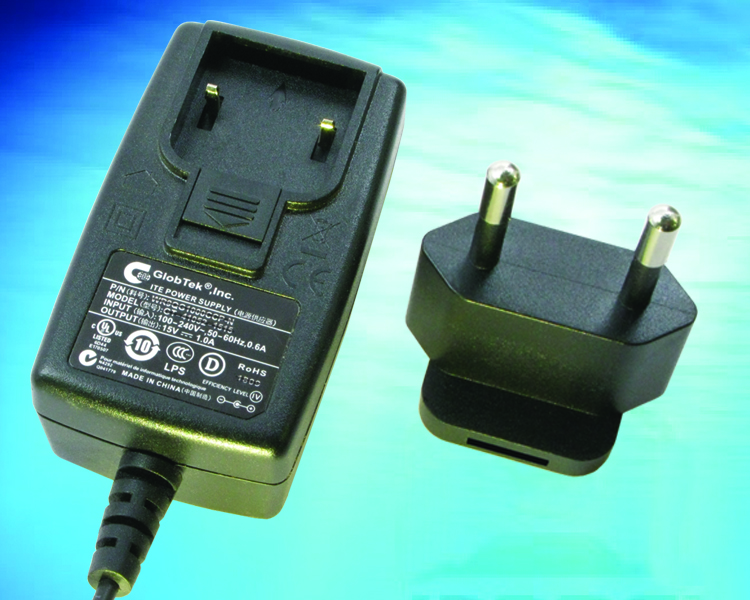

In response to INMETRO rule nº 251 from September 15th, 2009 GlobTek now provides Q-BR(R) Interchangeable Plug Blades strictly designed to comply with Brazilian (Brazil/Brasil) NBR14136 Plug Standard. In accordance with local regulations, Wall plug in power supplies and adaptors of all types must comply with the latest standards which are unique to all other plugs.

The Q-BR(R) Brazil Plug is compatible with the following models:

ITE (Information Technology Equipment)(60950-1):

																			IP Rating
SWITCHMODE POWER SUPPLIES  •   CONSTANT CURRENT
SWITCHMODE POWER SUPPLIES
5W	GT-41078-USB Datasheet	90- 264 VAC, 47- 63 Hz	5	1	•
6W	GT-41076 Changeable Blades Datasheet	90- 264 VAC, 47- 63 Hz	3 - 24 VDC	1	•
6W	GT-41134 Datasheet	90- 264 VAC, 47- 63 Hz	3.3- 15	1	•
6W	GT-41134-W2 Datasheet	90- 264 VAC, 47- 63 Hz	3.3- 15	1	•
6W	GT-41134-W2E Datasheet	90- 264 VAC, 47- 63 Hz	3.3- 15	1	•
6W	GT-41134-W2K Datasheet	90- 264 VAC, 47- 63 Hz	3.3- 15	1	•
12W	GT-41135 Datasheet	90- 264 VAC, 47- 63 Hz	5- 48 VDC	1	•
15W	GT-41052 Changeable Blades Datasheet	90- 264 VAC, 47- 63 Hz	5- 24 VDC +48	1	•	•													IP52
18W	GT-41062 Datasheet	90- 264 VAC, 47- 63 Hz	18- 24	1	•
18W	GT-41062 Desktop Datasheet	90- 264 VAC, 47- 63 Hz	5- 24 VDC	1	•
18W	GT-41062 Changeable Blades Datasheet	90- 264 VAC, 47- 63 Hz	5- 24 VDC	1	•
18W	GT-41062-T2 Datasheet	90- 264 VAC, 47- 63 Hz	18- 24	1	•
18W	GT-41080 Datasheet	90- 264 VAC, 47- 63 Hz	9- 24	1	•
18W	GT-41081 Datasheet	90- 264 VAC, 47- 63 Hz	5- 9	1	•
25W	GT-41060-XY Changeable Blades Datasheet	90- 264 VAC, 47- 63 Hz	5- 30 VDC	1										cc					IP52
25W	GT-41060-XY-FW Open Frame Datasheet	90- 264 VAC, 47- 63 Hz	5- 30 VDC	1		•
30W	GT-41131 Datasheet	90- 264 VAC, 47- 63 Hz	12- 48 VDC	1	•														IP52
40W	GT-43007-XXYY Datasheet	100- 240 VAC		1	•					y									IP52
SWITCHMODE POWER SUPPLIES  •   CONSTANT CURRENT
CONSTANT CURRENTBack to top
25W	GT-41060-XY Changeable Blades Datasheet	90- 264 VAC, 47- 63 Hz	5- 30 VDC	1			Chng 4 Pins							cc					IP52

Medical/Household (60601-1, 60335-1, 1310):

																			IP Rating
SWITCHMODE POWER SUPPLIES  •   CONSTANT CURRENT
SWITCHMODE POWER SUPPLIES
6W	GTM41076 Series Datasheet	90- 264 VAC, 47- 63 Hz	3 - 24 VDC	1	•		Chng 4 Pins			Y	Y	Y							IP52
6W	GTM41134 Datasheet	90- 264V	5- 36v	1	•						Y	Y
18W	GTM41080 Datasheet	100- 240 VAC, 47- 63 Hz	5- 48 VDC	1	•						Y	Y
18W	GTM41080-F Datasheet	100- 240 VAC, 47- 63 Hz	5- 48 VDC	1		•					Y	Y
25W	GTM41060-XY Changeable Blades Datasheet	90- 264 VAC, 47- 63 Hz	5- 30 VDC	1			Chng 4 Pins			Y	Y	Y		cc
1-25W	GTM41060-XY-FW Datasheet	90- 264 VAC, 47- 63 Hz	3- 30 VDC	1		•				Y	Y
1-25W	GTM41060-XY-W2 Datasheet	90- 264 VAC, 47- 63 Hz	3- 30 VDC	1	•					Y	Y
SWITCHMODE POWER SUPPLIES  •   CONSTANT CURRENT
CONSTANT CURRENTBack to top
0-25W	GTM41060-XY Interchangeable Datasheet	90- 264 VAC, 47- 63 Hz	5- 30 VDC	1							Y
25W	GTM41060XY Interchangeable Datasheet	90- 264 VAC, 47- 63 Hz	5- 30 VDC	1						Y	Y

The above listed models may be additionally certified to INMETRO Standard IEC60950-1:2005 and comply with ANATEL EMC requirements

GlobTek power supplies comply with and are suitable for use with Eletro-medical devices required to comply with INMETRO and ANVISA standard ABNT NBR NM 60601.

What kind of power supply can be exported/sold to Brazil/Brasil? GlobTek’s power supplies with NBR14136 compliant interchangeable plug! This solution eliminates the requirement of providing uncommon and expensive Brazil power cords.
